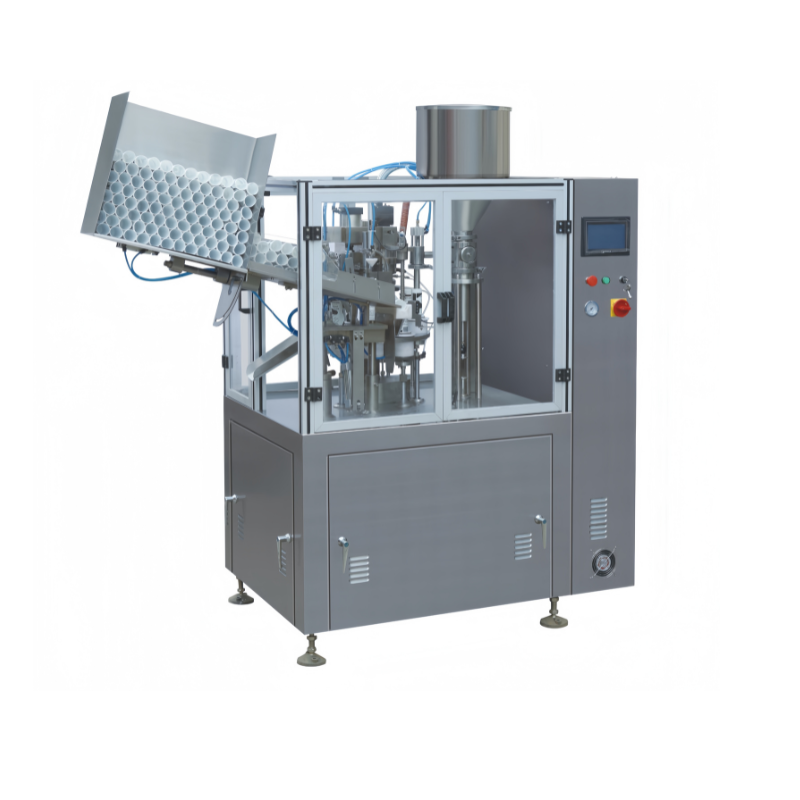

NF Automatic tube filling and sealing machine is mainly used for filling ointment materials into cylindrical capped tubes of Aluminum and sealing the tube ends. It complies with the standard of GMP, it adopts new type dosing pump of stainless-steel butterfly vale, and the ointment weighting is very accurate by adopting the fine adjustment device of the filling screw. It adopts photoelectric register control and programed in PLC, very easy for operation and maintenance.
Precision Piston Filling: Easily adjustable volume for high filling accuracy.
GMP-Compliant Design: Constructed with polished stainless steel for easy cleaning and meets hygiene standards.
PLC & Touchscreen Control: Fully automatic operation with an intuitive HMI for monitoring and control.
Stable & Quiet Operation: Features sealed ball bearings and self-lubricating slides for smooth, low-noise performance.
Advanced Safety & Functions:No container, no fill detection. Automatic batch number embossing.Automatic production counting.
Model | NF-60 | NF-80 | NF-30 (Semi-automatic) |
Applied bottle range | 5-180ml | 5-250ml | 0-250ml |
Capacity | 30-60 tubes/minute | 40-80 tubes/minute | 10-30 tubes/minute |
Accuracy of filling | ±1% | ±1% | ±1% |
Suitable tube size | Length: 50-180 mm, φ13-35mm | Length: 50-210 mm, φ13-50mm | Length: 50-180 mm, φ13-35mm |
Required compressed air | 0.4-0.6Mpa, 25-35L/min | 0.4-0.6Mpa, 25-35L/min | 0.4-0.6Mpa, 25-35L/min |
Noise | ≤70dB | ≤70dB | ≤70dB |
Electrical Requirements | Voltage: 220v, Frequency: 50-60HZ | Voltage: 220v, Frequency: 50-60HZ | Voltage: 220v, Frequency: 50-60HZ |
Weight | 850KG | 1200KG | 280KG |
Dimensions | 1950×1000×1800 mm | 2200×1200×2080 mm | 1100×800×1600mm |
Q1: Manufactureror trading company?
A1: We are manufacturer with own factory and exporting department.
Q2: What's the lead time ofyour machine?
A2: Normally it's about 30~45 working days
Q3: What's the payment terms?
A3:30% deposit TT, 70% paid before shipment; or L/C
Q4: Can we check machine before order?
A4: Yes, welcome to visit our factory and check machine anytime.
Q5: Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
