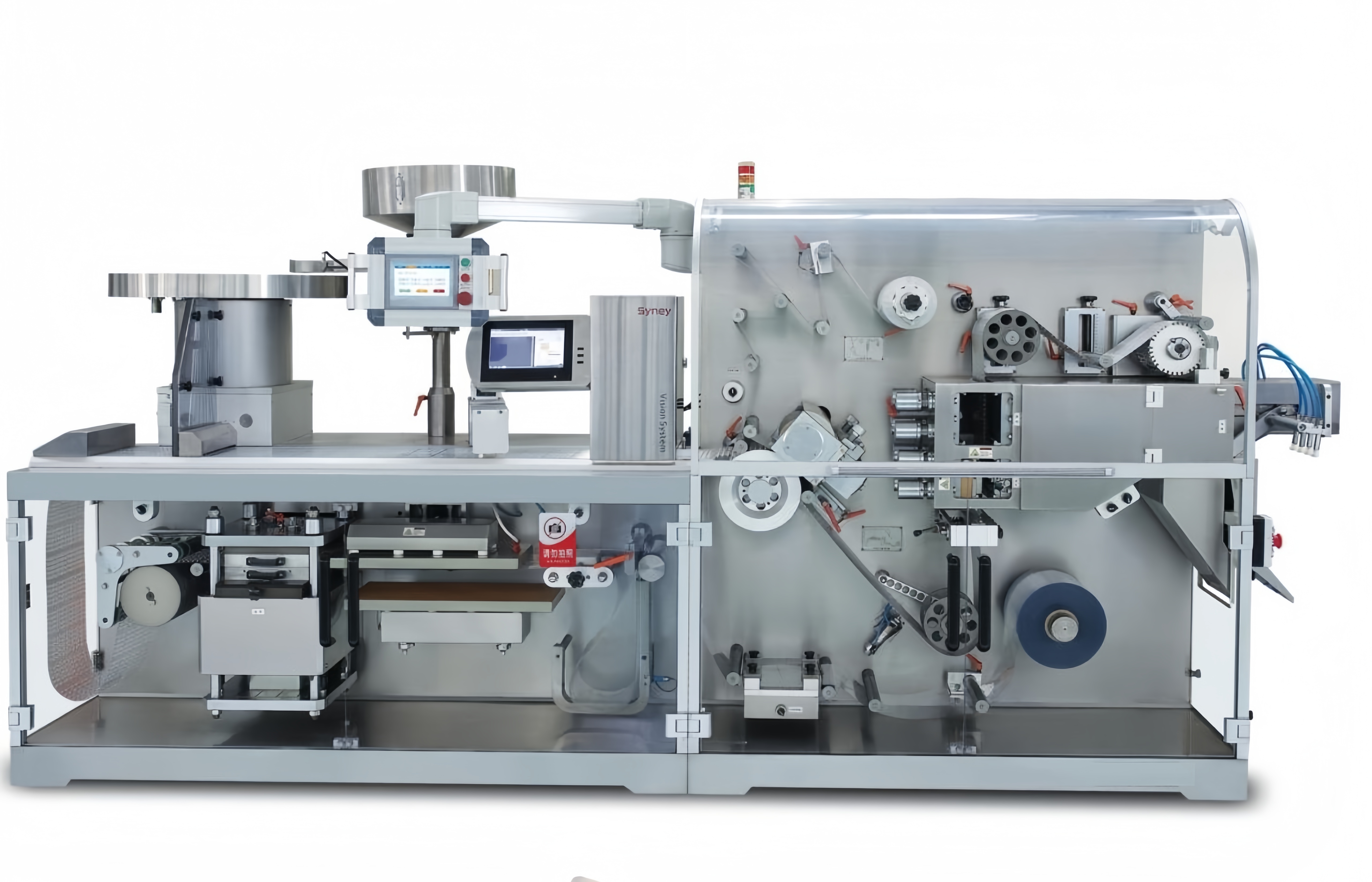

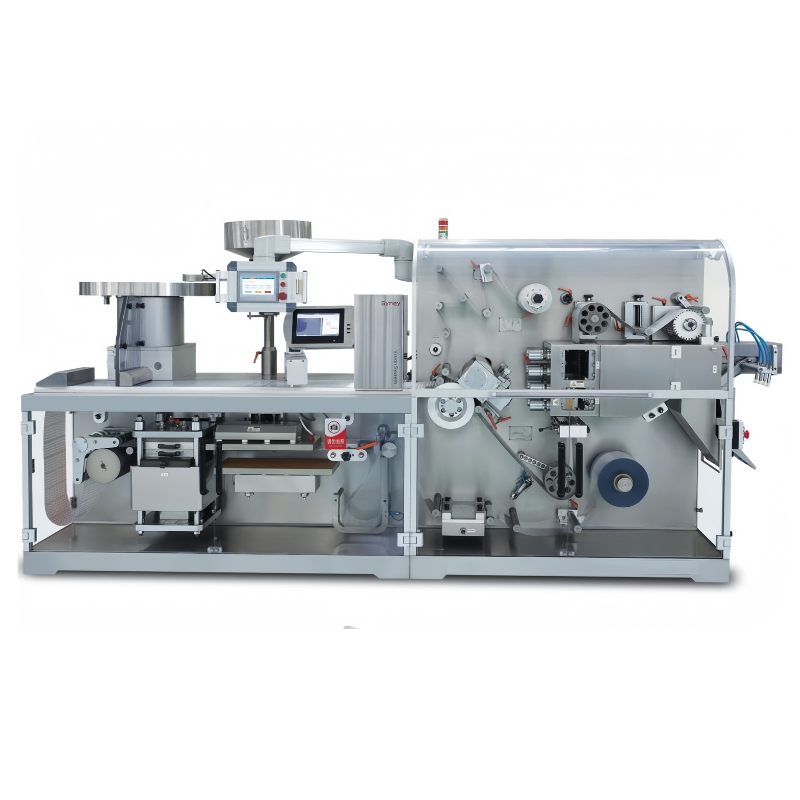

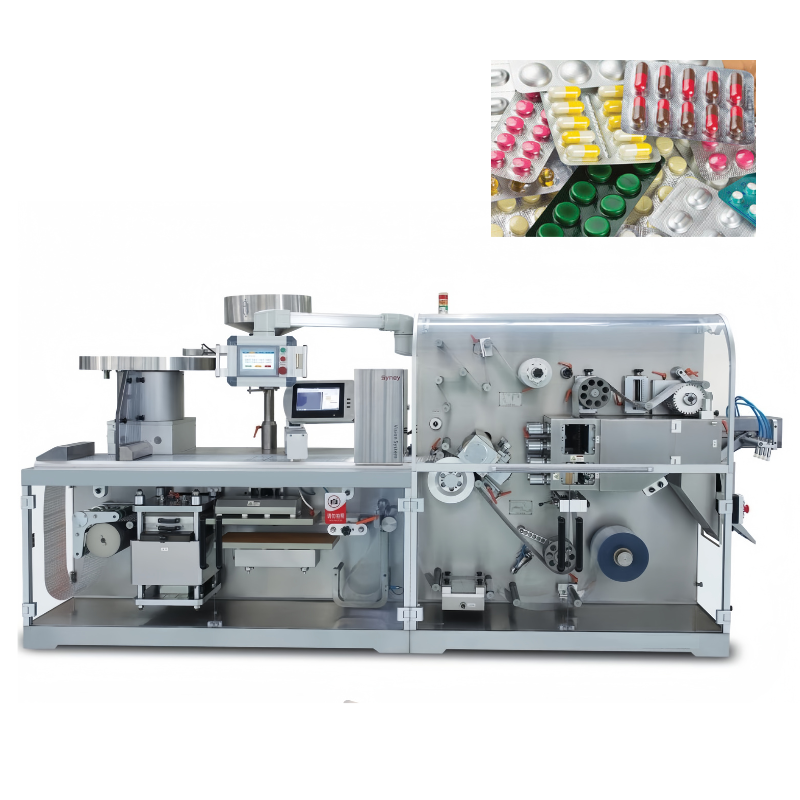

This machine is suitable for automatic high speed ALU-PVC packing of capsules, tablets and other regular shape medicine. It adopts flat pressure forming to form strong and average blisters, and roller type mesh sealing to ensure reliable sealing. The machine is equipped with batching system, embossing device and horizontal boundless punching to achieve high automation and efficiency.
1.Fast mould change, push-oriented, without using tools
2.Adopt servo traction, simple to set up, convenient to debug
3.push-oriented punch mould installation. If inspection and reject system is equipped and changed, no need to dismantle suck discs
4.Long distance between two heating plates of forming when machine stops, to avoid PVC to be excessively heated and softened.
5.Optional configurations include camera inspection and rejection device, mechanical hand structure with suck heads, automatic vibrating guide rail feeder, etc.
Model | DPH-270D (Roller type) | DPB-270J (Plate type) |
Punch frequency | 60-160(time/min) | 20-50(time/min) |
Capacity | 4800-12000blister/hour | 4800-12000blister/hour |
Forming area | 200x250x12 (mm) | 110x260x26 |
Traction stroke | Punch:20-120mm forming:80-250mm | Punch:20-120mm |
Blister specification | 80*57、95*65、103*43（customized allowed） | 80*57（customized allowed） |
Overall dimension (L*W*H) | 4100*850*1760mm | 4500x850x1750mm |
Main Motor Power | 3KW | 2.2KW |
weight | 3000KG | 2600KG |
Q1: Manufactureror trading company?
A1: We are manufacturer with own factory and exporting department.
Q2: What's the lead time ofyour machine?
A2: Normally it's about 30~45 working days
Q3: What's the payment terms?
A3:30% deposit TT, 70% paid before shipment; or L/C
Q4: Can we check machine before order?
A4: Yes, welcome to visit our factory and check machine anytime.
Q5: Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
