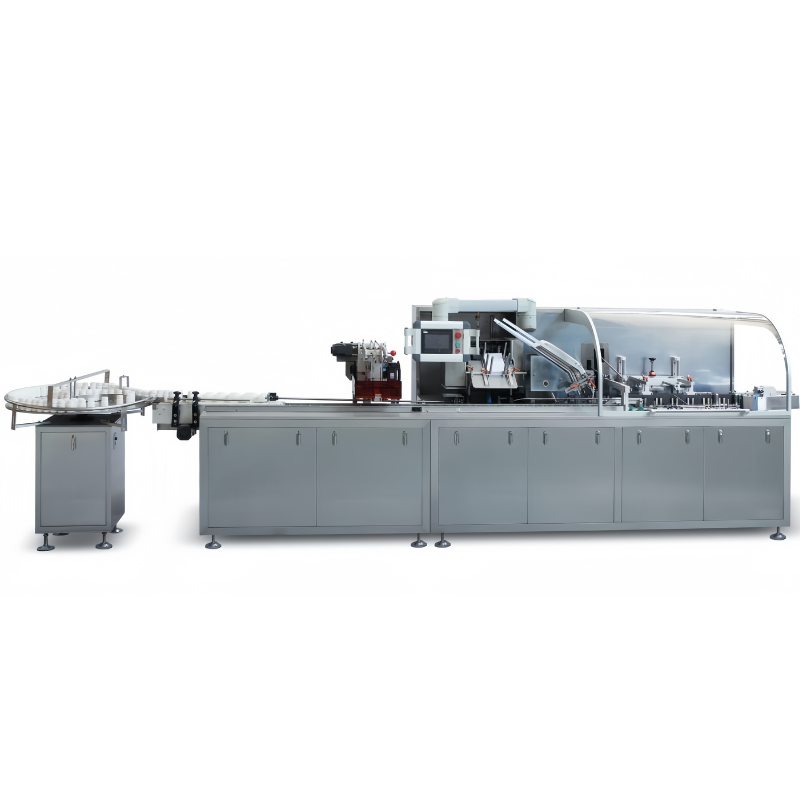

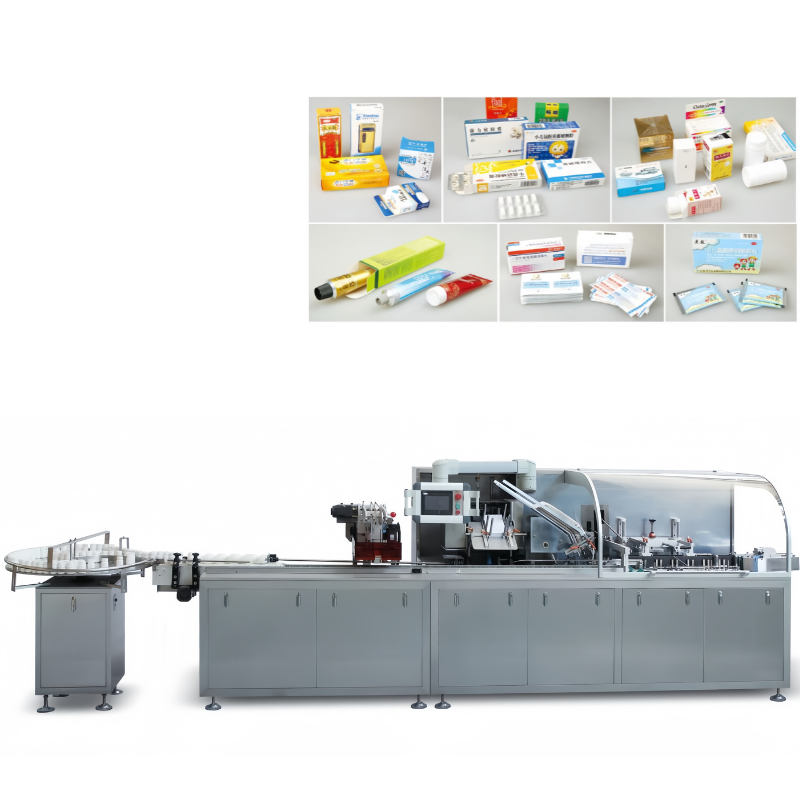

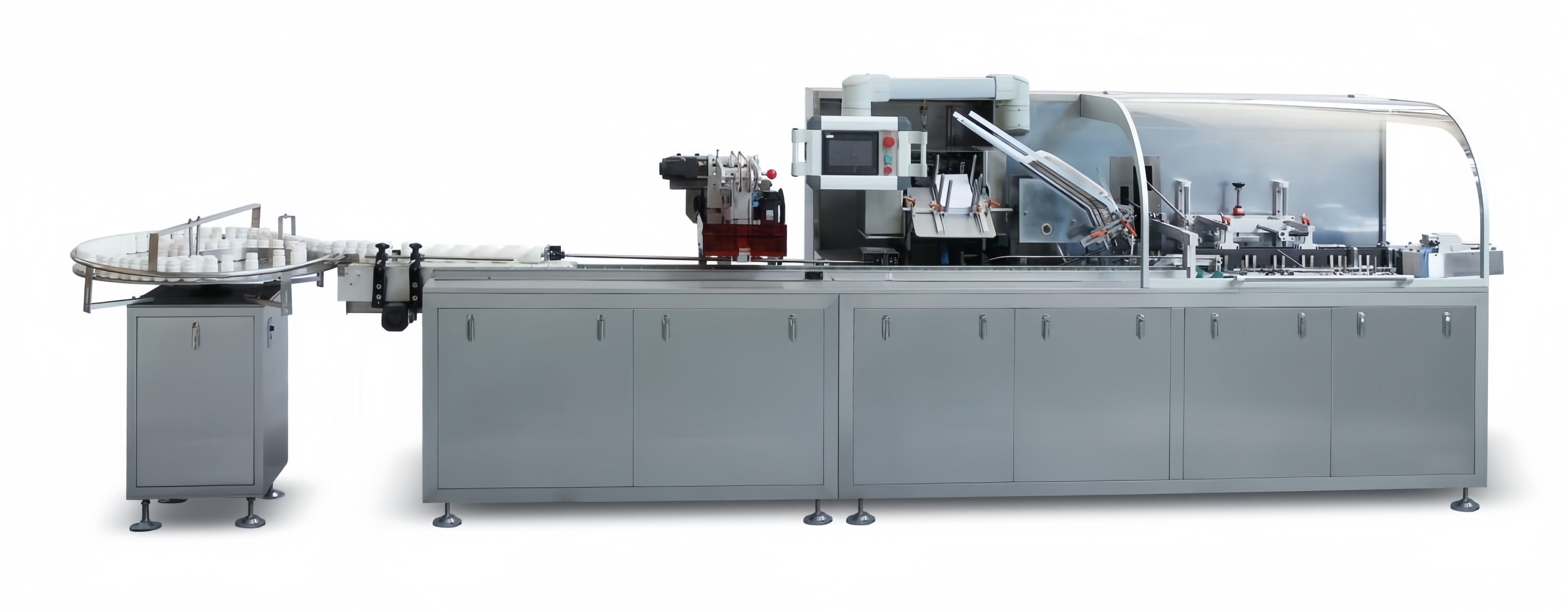

This machine is suitable for packing blisters, tubes, ampoules and other related objects into boxes intermittently. The highest speed can up to 120 boxes/min.It has advantage of high packing efficiency and good quality. This machine can fold leaflet, open box, insert blister into box, emboss batch number and close box automatically. It adopts frequency inverter to adjust speed, human machine interface to operate, PLC to control, and photoelectric to supervise and control each station the reasons automatically, which can solve the troubles in time. This machine can be used separately, and also can be linked to other machine to be a production line. Note: this machine can also equip with hot melt glue device to do hot melt glue sealing for box.
model | ZHJ-150 | ZHJ-260 |
Production capacity (box/min) | 60-120 | 150-260 |
Size of box (mm)(L×W×H) | (58-200)×(25-100)×(15-70) | (65-170)×(28-870)×(15-55) |
Specification of box | 250-350g/m2 | 250-350g/m2 |
Size of leaflet (L×W) | (100-180)×(100-220)mm | (110-320)×(100-180)mm |
Specification of leaflet | 55-65g/m2 | 55-65g/m2 |
Volume of air consumption | 15m3/h(pressure 0.5-0.7Mpa) | |
Total power | 1.5Kw | 2.2Kw |
Power supply | AC380V 50Hz 3phase | AC380V 50Hz 3phase |
Overall dimension | 4300×1150×1500 mm | 4400×1500×1800 mm |
Weight | 1200 kg | 4000 kg |
Q1: Manufactureror trading company?
A1: We are manufacturer with own factory and exporting department.
Q2: What's the lead time ofyour machine?
A2: Normally it's about 30~45 working days
Q3: What's the payment terms?
A3:30% deposit TT, 70% paid before shipment; or L/C
Q4: Can we check machine before order?
A4: Yes, welcome to visit our factory and check machine anytime.
Q5: Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
This machine is suitable for packing blisters, tubes, ampoules and other related objects into boxes intermittently. The highest speed can up to 120 boxes/min.It has advantage of high packing efficiency and good quality. This machine can fold leaflet, open box, insert blister into box, emboss batch number and close box automatically. It adopts frequency inverter to adjust speed, human machine interface to operate, PLC to control, and photoelectric to supervise and control each station the reasons automatically, which can solve the troubles in time. This machine can be used separately, and also can be linked to other machine to be a production line. Note: this machine can also equip with hot melt glue device to do hot melt glue sealing for box.
model | ZHJ-150 | ZHJ-260 |
Production capacity (box/min) | 60-120 | 150-260 |
Size of box (mm)(L×W×H) | (58-200)×(25-100)×(15-70) | (65-170)×(28-870)×(15-55) |
Specification of box | 250-350g/m2 | 250-350g/m2 |
Size of leaflet (L×W) | (100-180)×(100-220)mm | (110-320)×(100-180)mm |
Specification of leaflet | 55-65g/m2 | 55-65g/m2 |
Volume of air consumption | 15m3/h(pressure 0.5-0.7Mpa) | |
Total power | 1.5Kw | 2.2Kw |
Power supply | AC380V 50Hz 3phase | AC380V 50Hz 3phase |
Overall dimension | 4300×1150×1500 mm | 4400×1500×1800 mm |
Weight | 1200 kg | 4000 kg |
Q1: Manufactureror trading company?
A1: We are manufacturer with own factory and exporting department.
Q2: What's the lead time ofyour machine?
A2: Normally it's about 30~45 working days
Q3: What's the payment terms?
A3:30% deposit TT, 70% paid before shipment; or L/C
Q4: Can we check machine before order?
A4: Yes, welcome to visit our factory and check machine anytime.
Q5: Does the machine power voltage meet buyers' factory power source?
A5: We can do it as your request.
