Vacuum Mixer

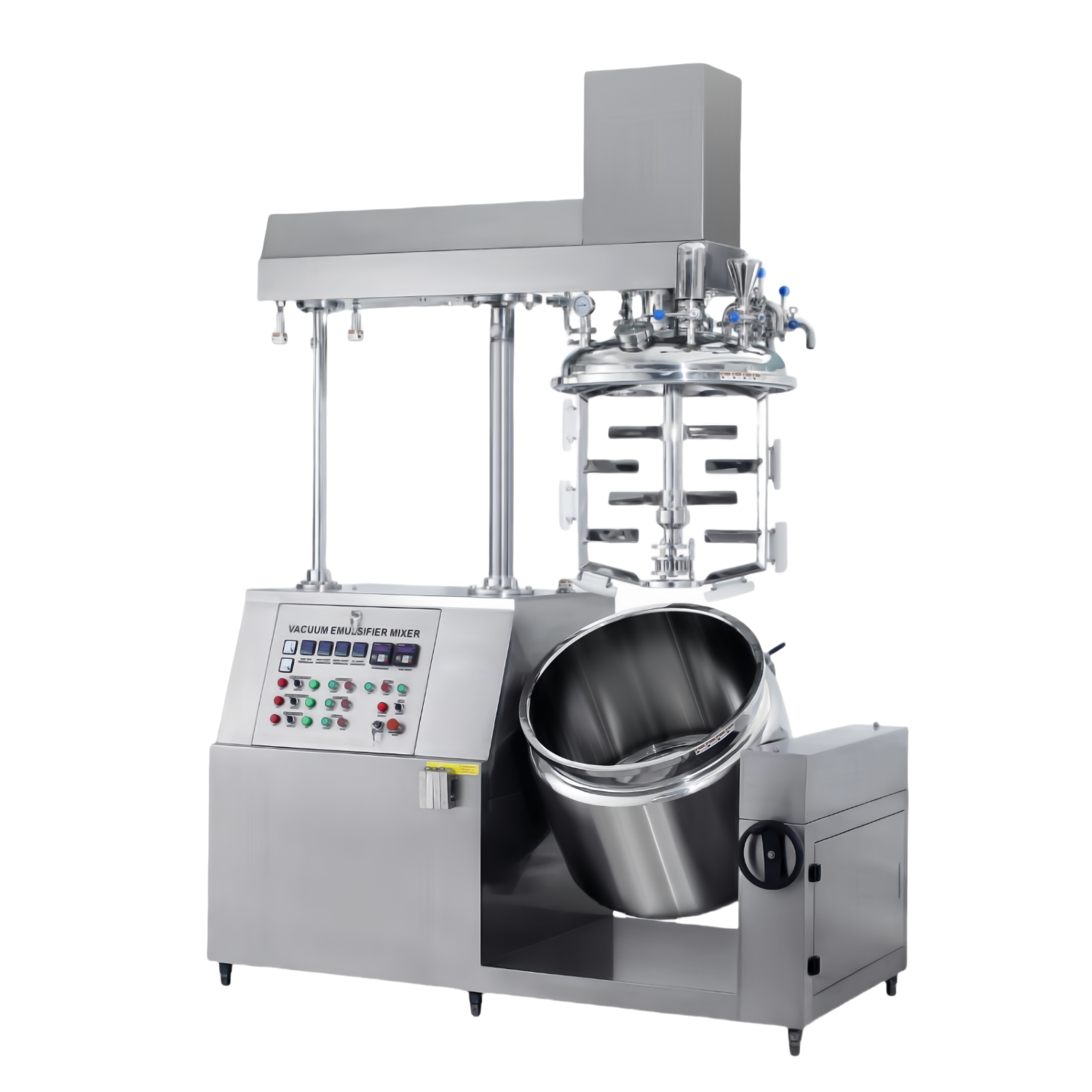

The machine adopts upside coaxial triple mixer, which opens cover through hydraulic pressure up-down. The rotate speed of rapid homogeneous mixer is 0-3500r/min(frequency control)while that of slow wall-scraping mixer is 0-60r/min(frequency control).The homogeneous head adopts high-shearing vortex emulsifying mixer. Slow wall-scraping mixer clings to kettle bottom and kettle wall automatically. Vacuum material absorption (especially for powder material)can avoid powder dusts rising. The whole process should be carried out in vacuum condition so that material will not produce air bubble after rapid-speed mixing and the process can meet sanitary and aseptic requirement. The system is equipped with CIP cleaning system. The parts where vessel contacts material adopt SUS316L material. The inner surface adopts mirror polish(300 EMSH Sanitary-grade)In order to guarantee the stability of control part, the electric appliance control part adopts products of Germany Siemens Company, press button adopts product of Germany Schneider company, transducer uses products of Japan Panasonic Electric Engineering, and vacuum pump uses products of Siemens Company. The machine is made completely in accordance with GMP standard, which is the most advanced and ideal cream and ointment production equipment in domestic.

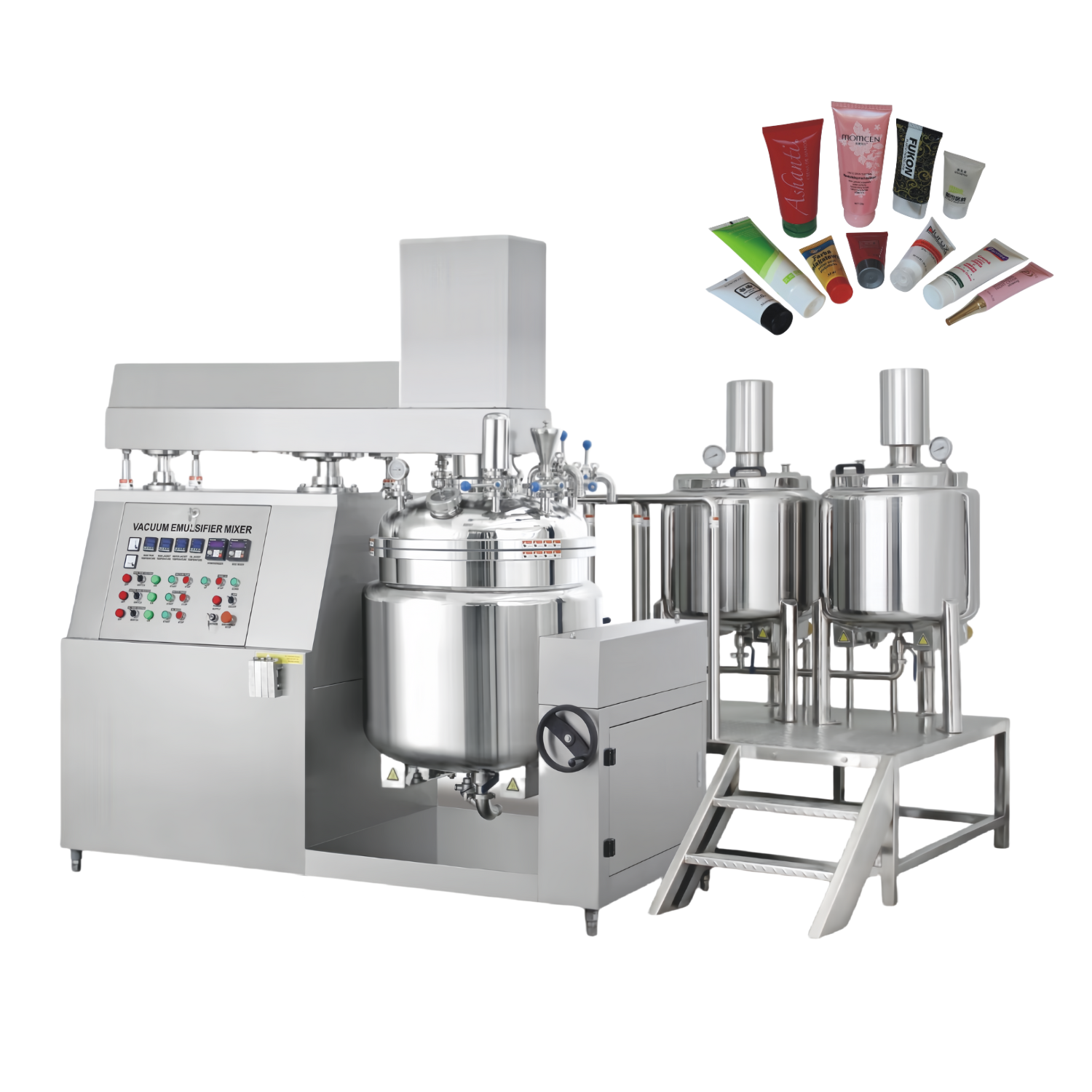

The machine is fit for production of ointment and cream products in cosmetics plant. It is especially more effective for preparation and emulsification of high-viscosity host material and materials that contain much solid substance.

• Special emulsifying device, the materials are inhaled from top and bottom ends and extruded from middle side

• Manual or auto electric device to tilt main tank with easily. discharging and cleaning.

• Self-fitted vacuum system to deaerate and help to feed raw. materials inside the main mixer tank.

• Double digit temperature controller with well accuracy.

• Suitable for higher viscosity of products.
